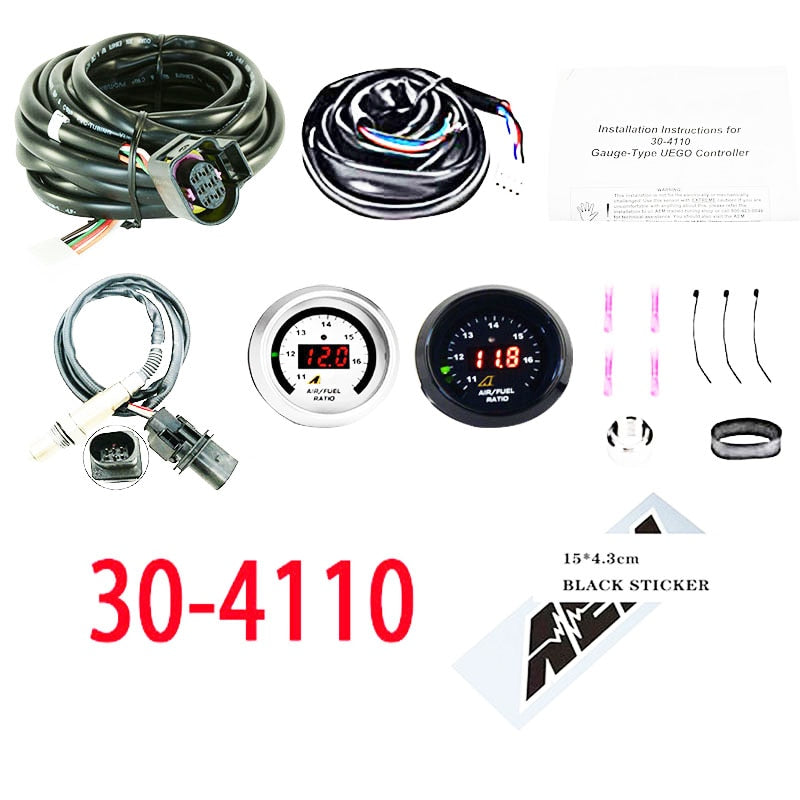

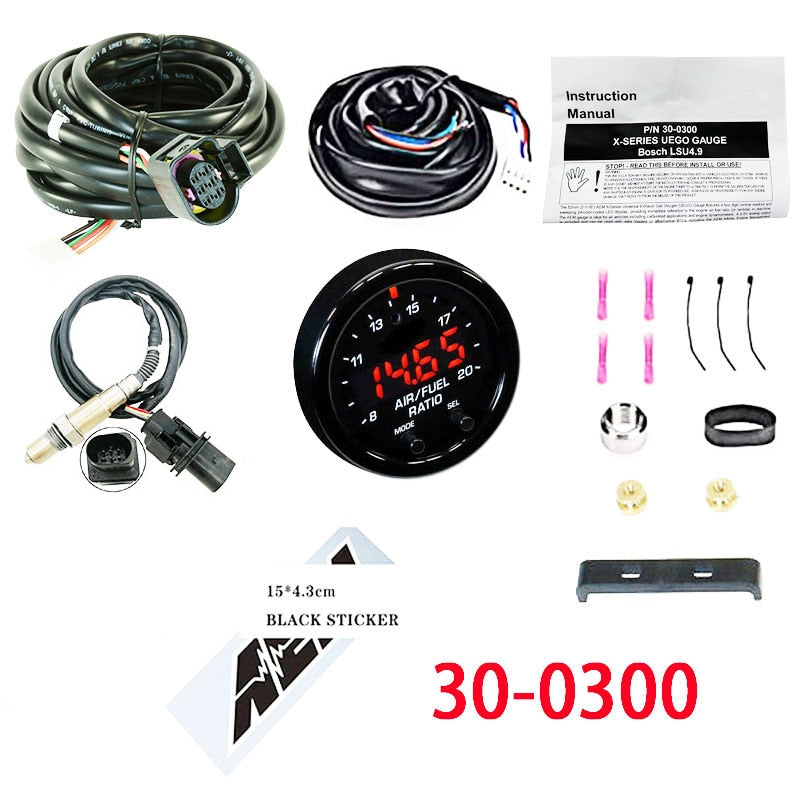

Part Number:30-0300 30-4110

Description:X-Series AFR Gauge

Features:Durable
and high quality, Easy Installation,High accuracy, High temperature
resistance (-30°Cto 120°C)

Condition: 100% BRAND NEW

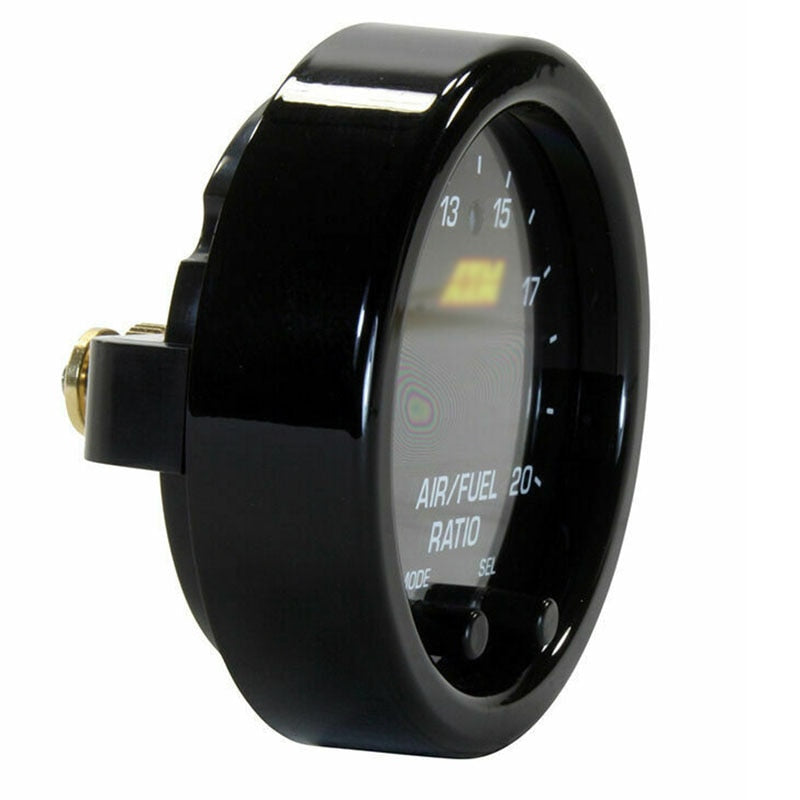

Design: Wideband Air/Fuel Gauge

wideband UEGO sensor controller accurately monitors Air/Fuel ratios
(AFR) during the tuning process to prevent a lean fuel mixture, which
could lead to engine damage. It has combined its single-channel wideband
UEGO controller and gauge display into one unit, uniting unsurpassed
AFR accuracy and control with an easy-to-read interface. The Gauge-Type

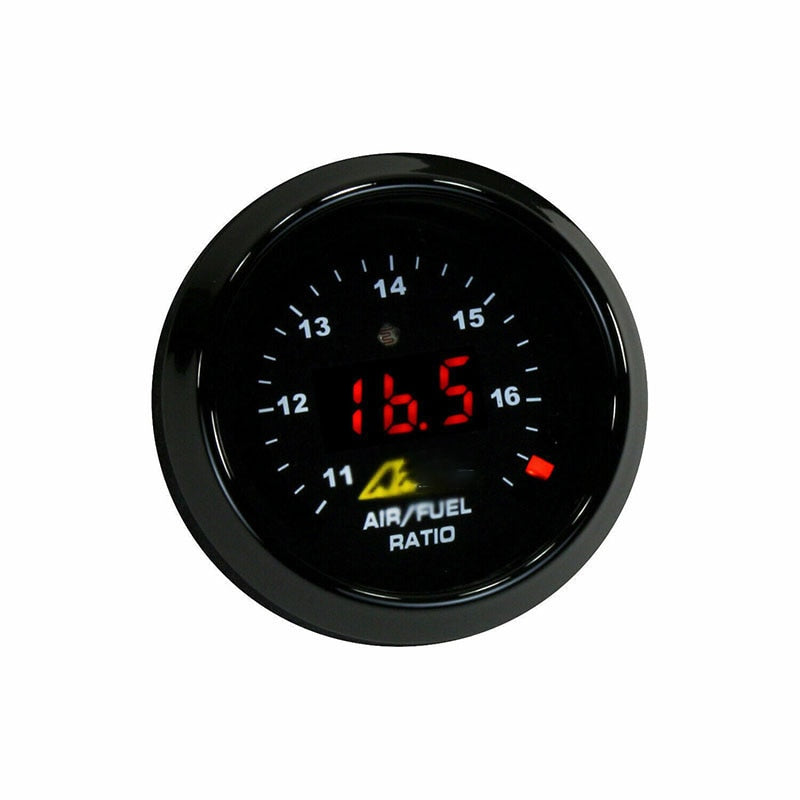

Wideband UEGO Controller features a digital LED display and sweeping LED
“needle” that changes colors as AFR changes from rich to lean. The
unit’s 52mm (2-1/16”) gauge housing fits in most gauge pods and can be
remotely mounted virtually anywhere.

WHY
YOU NEED ONE AFR:The 30-4110 wideband gauge is easy to read, highly
accurate, and controls its data by a digital LED display and LED needle
that will change colors as the ratios change from rich to lean.
Utilizing a 4.9 0258017025 LSU sensor.

Gauge Display/0-5V Output Gasoline values from 10:1 to 20:1 AFR

0-5V Output E85 values from 6.6 to 13.2:1 AFR

0-5V Output Ethanol values from 6.14 to 12.3:1 AFR

0-5V Output Methanol values from 4.4 to 8.8: AFR

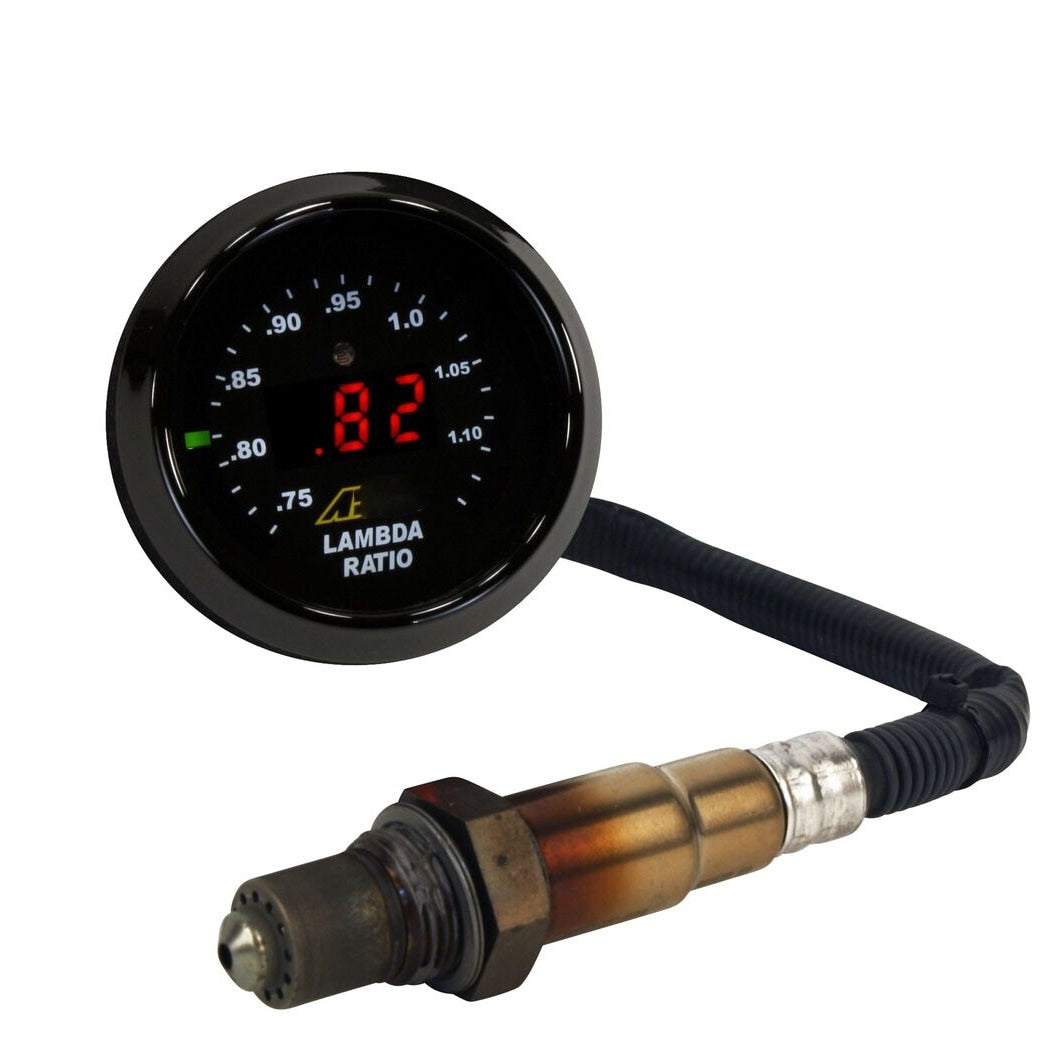

Gauge Display/0-5V Output Lambda values from 0.68 to 1.36

Interchangeable black and white faceplates included for customizing gauge appearance (digital gauges only)

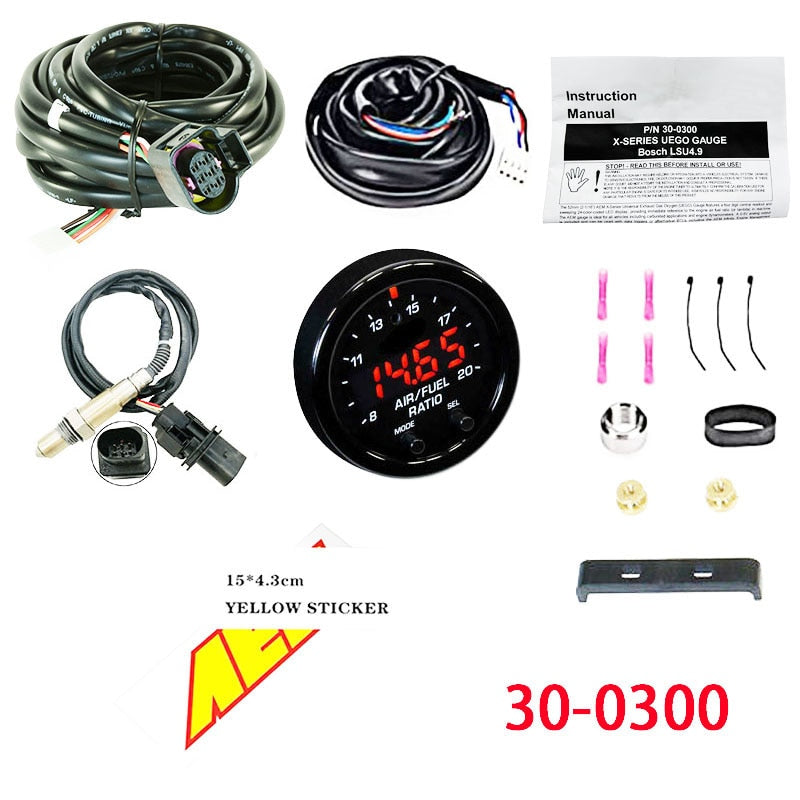

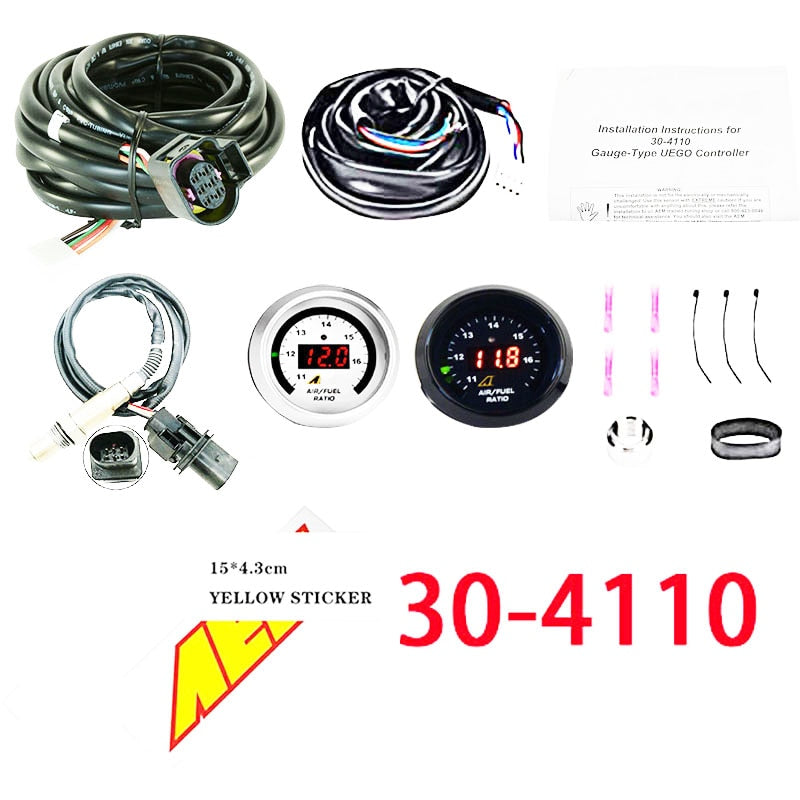

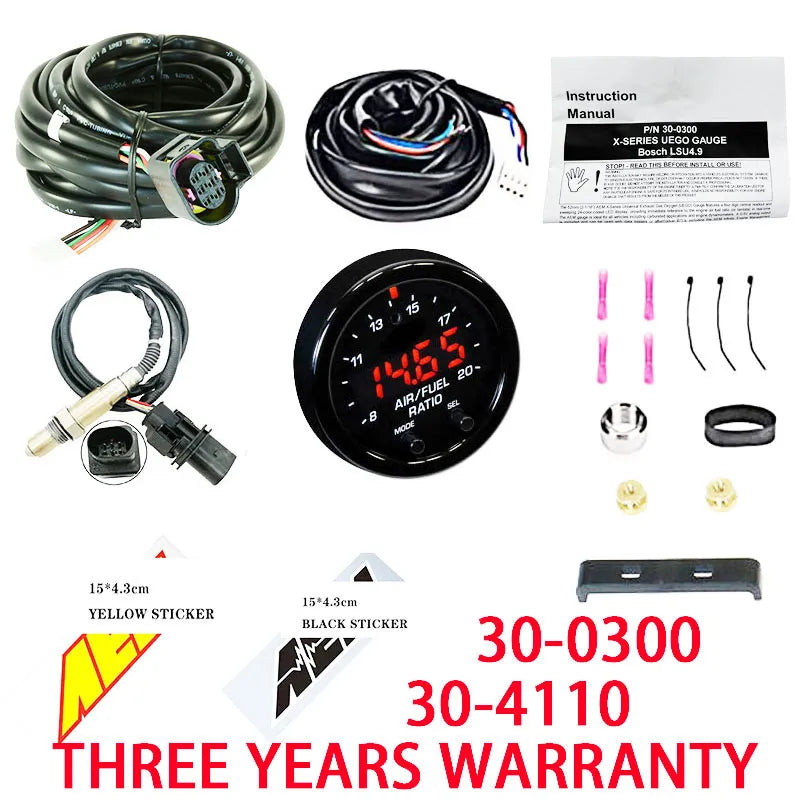

Bosch4.9 LSU wideband sensor and weld-in bung included

No free air sensor calibration required - ever

Interchangeable black and silver bezels included

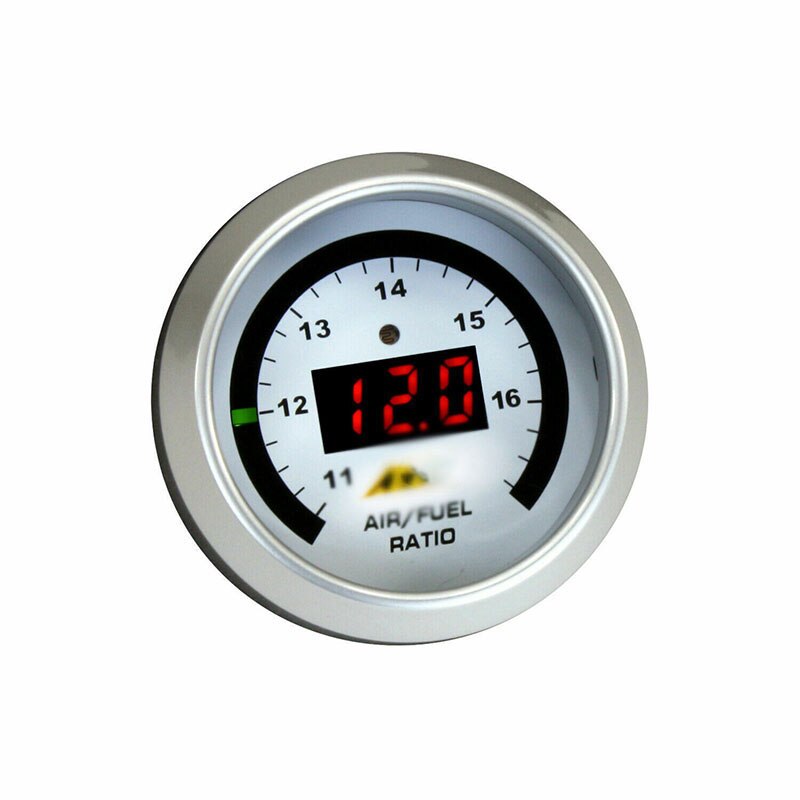

Interchangeable black and white faceplates included

52mm (2-1/16") gauge housing

0-5v analog output (10-20 AFR range only)

* Ideal AFR monitoring tool for EFI and carbureted applications, and engine dynamometers

* Does not oscillate AFR reading like narrow band sensors

* No laptop required for monitoring!

* Bosch sensor included

* Accurate to 0.1 AFR
